What Is Ion Exchange?

Ion exchange is a physicochemical process where unwanted dissolved ions in water are swapped with desirable ionsheld on a solid-phase resin material. This happens without changing the physical state of the resin, making the process efficient, repeatable, and cost-effective.

In simple terms:

The resin behaves like a magnet that grabs unwanted ions from water and gives away its own harmless ions in exchange.

How Do Ion Exchange Resins Work?

Ion exchange resins are made of synthetic polymers that have active ionic groups. These groups are either:

1. Cationic (negatively charged sites) – exchange positive ions like calcium (Ca²⁺), magnesium (Mg²⁺), iron (Fe²⁺)
2. Anionic (positively charged sites) – exchange negative ions like chloride (Cl⁻), nitrate (NO₃⁻), sulfate (SO₄²⁻)

There are two main mechanisms depending on the type of resin.

1. Cation Exchange Resin

(e.g. ASHAION® C 250 H / C 250 Na)

These resins contain sulfonic acid groups (-SO₃H), which release H⁺ or Na⁺ ions and capture Ca²⁺, Mg²⁺, and other hardness ions from water.

Used for:

1. Water softening
2. Boiler feedwater pre-treatment
3. Metal ion removal
4. Industrial process water

Example Reaction:

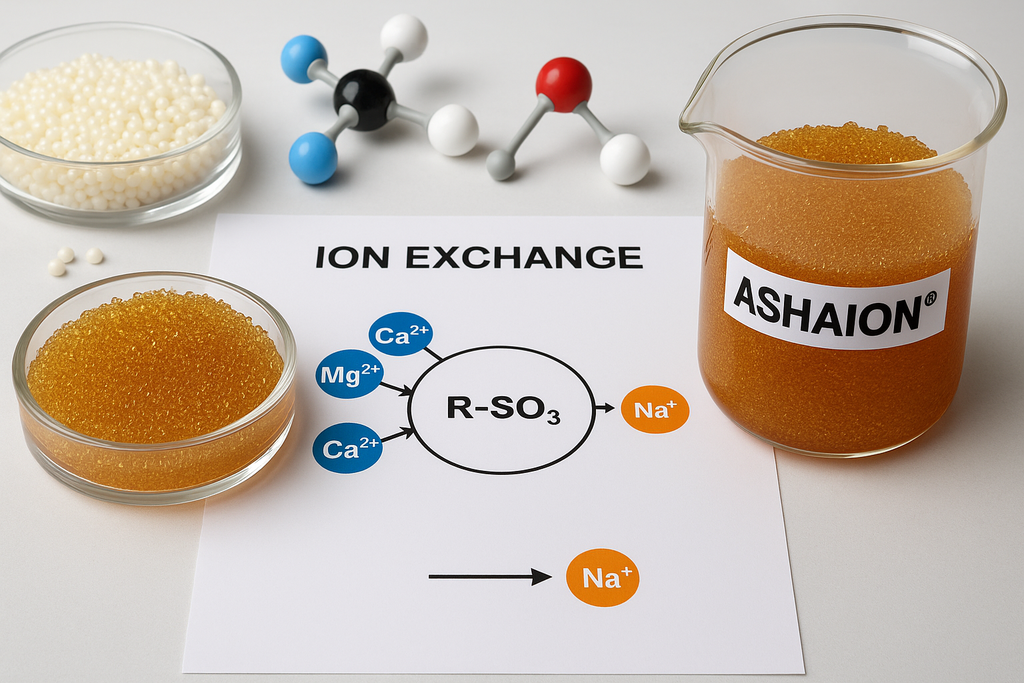

2 R-Na + Ca²⁺ → R₂-Ca + 2 Na⁺

(Resin exchanges its sodium for calcium)

2. Anion Exchange Resin

(e.g. ASHAION® A 100 Cl)

These resins contain quaternary ammonium groups (-N⁺(CH₃)₃Cl⁻) that release OH⁻ or Cl⁻ ions and capture anions like NO₃⁻, SO₄²⁻, and HCO₃⁻.

Used for:

1. Demineralization
2. Nitrate and fluoride removal
3. Condensate polishing
4. High-purity water systems

Example Reaction:

R-OH + Cl⁻ → R-Cl + OH⁻

(Resin releases hydroxide and captures chloride)

3. Mixed Bed Resins

(e.g. ASHAION® MB Series)

Mixed bed resins combine strong acid cation and strong base anion resins in a single column. These are used when you need very low conductivity or ultrapure water, such as in electronics, pharmaceuticals, and dialysis.

Applications of Ion Exchange Resins

ASHAION® ion exchange resins serve across industries like:

1. Water treatment plants – for softening and demineralization
2. Sugar factories – to purify sugar syrup and improve clarity
3. Pharmaceutical companies – for ultrapure water in formulations
4. Power plants – boiler feedwater and condensate polishing
5. Textile and dye manufacturers – dye removal and effluent treatment

All ASHAION® resins are manufactured using high-purity monomers, optimized cross-linking, and are tested rigorously for bead size uniformity, capacity, and mechanical strength.

Regeneration: Bringing the Resin Back to Life

Once the resin becomes saturated with unwanted ions, it must be regenerated using a chemical solution to restore its original ionic form.

ASHAION® resins are optimized for high regeneration efficiency, requiring lower chemical doses per cycle and helping reduce operating costs and environmental impact.

How to Choose the Right Resin?

Choosing the right ion exchange resin depends on several factors:

1. Application – Softening, deionization, polishing, wastewater recovery
2. Water composition – TDS levels, presence of iron, silica, nitrates, etc.
3. Operating conditions – Flow rate, temperature, pH, and cycle length
4. Regeneration method – Acid, base, or salt availability

At Asha Resins, we help industries, OEMs, and end users select the right resin based on detailed water analysis and system sizing.

Some popular ASHAION® grades include:

1. Cation Resins: ASHAION® C 250 H, ASHAION® C 250 Na, ASHAION® C 220
2. Anion Resins: ASHAION® A 100 Cl
3. Mixed Bed Resins: ASHAION® MB Series

Custom grades are also available for high-performance or export applications.

Benefits of ASHAION® Resins

1. High total exchange capacity
2. Excellent bead strength and uniformity
3. Fast ion kinetics and regeneration response
4. Long operating life with minimal fouling
5. Made in India using certified raw materials
6. Backed by full technical support and COA per batch
7.


Ready to Improve Your Water Quality?

Whether you're designing a new water treatment system or replacing old media, ASHAION® ion exchange resinsdeliver the performance, consistency, and value your operations need.

Get in touch today:

🌐 www.asharesins.com/ion-exchange-resins

📞 +91 70282 00892

✉️ sales@asharesins.com

Final Thoughts

Ion exchange resins are essential in today’s world — silently powering clean water in homes, industries, and critical systems. Understanding how they work helps you design better processes and make smarter purchasing decisions.

With ASHAION® by Asha Resins, you're not just buying a resin — you're choosing a trusted partner with 25+ years of manufacturing excellence, innovation, and industry knowledge.
